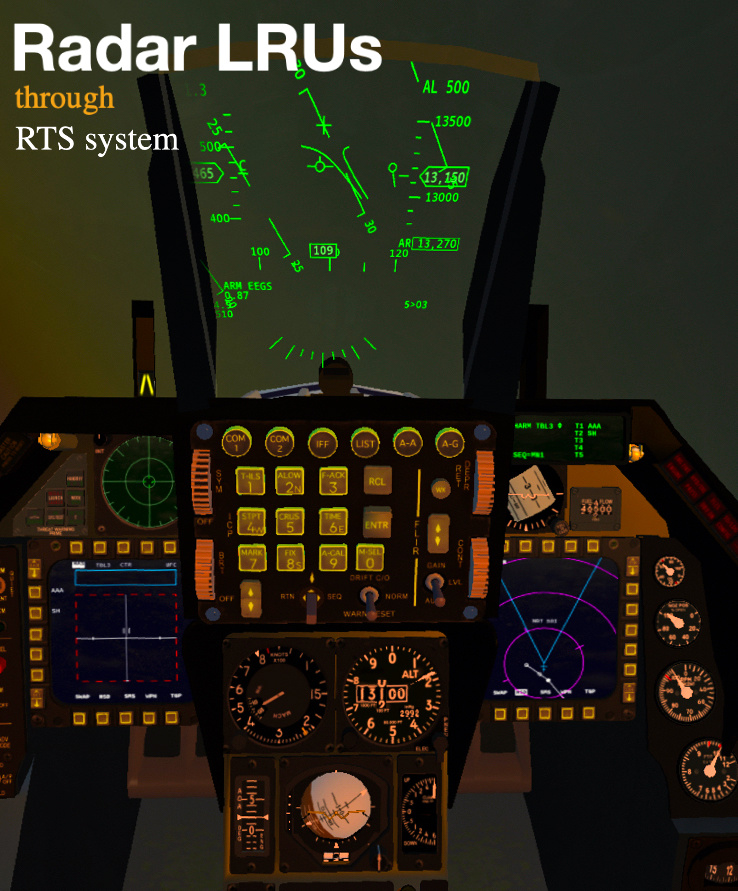

Radar LRU through RTS system

Develop a flight dynamics module with a radar simulator to model aircraft and environmental interactions, including air/sea/ground-based targets and scenery. Integrate radar signal processing via MIL-1553 and Ethernet. Provide INGPS and other LRU avionics bus data as per defined ICD and format. Include discrete signals like WOW for ground testing, mission recording, and replay for analysis. Enable flight crew and engineers to verify results. Offer utilities for target creation, self-diagnosis, and crash reporting.

Simulation of Radar

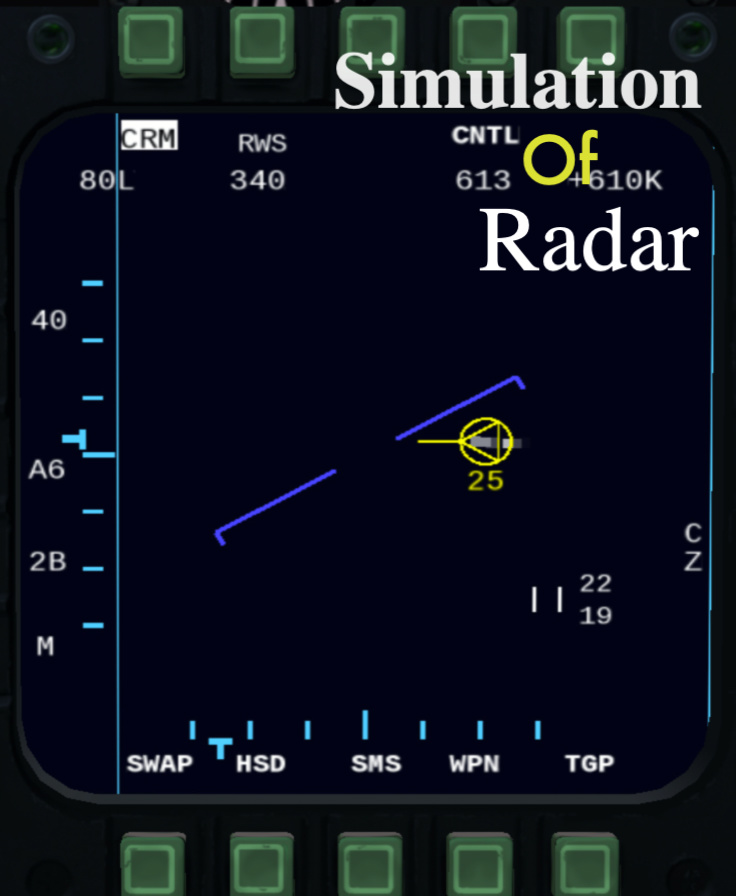

This project, completed at the client location, involved creating a radar simulator integrated with our aircraft systems (MFDs, PFDs, HUDs). It supports:

• Track While Scan
• Aircraft Combat Mode
• Ground Mapping Mode
• Ground Moving Target Mode
• Sea Mode
• Long Range Search
• Single Target Track and Fixed Target Track

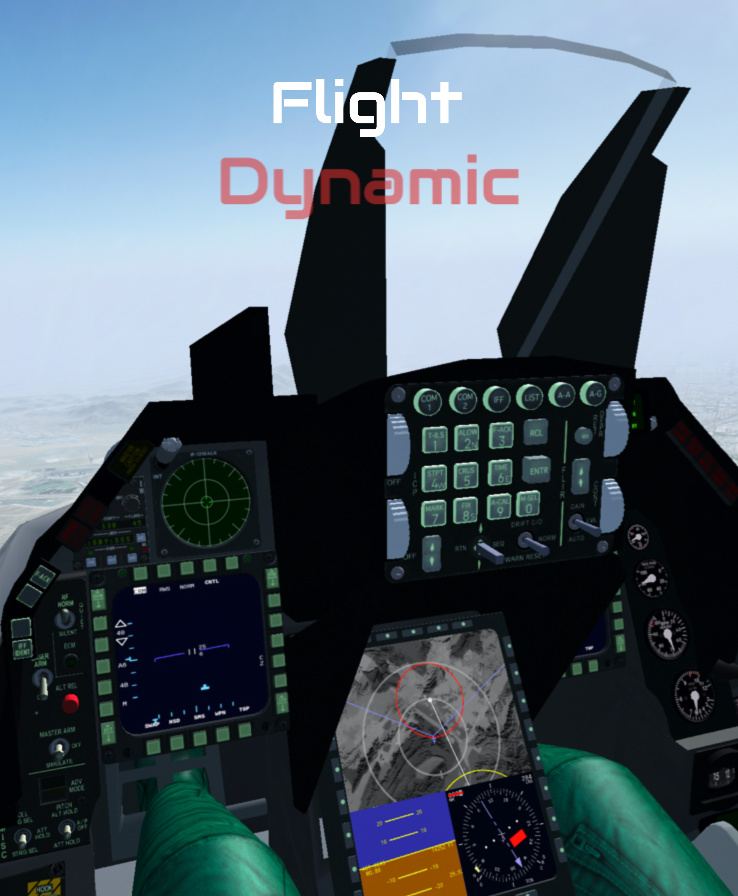

Flight Dynamic Model

The physics models created to depict the actual dynamics of the Jet :

• Equations of motion
• Flight Control System
• Propulsion model
• Aerodynamic model
• Kinematics and kinetics
• Gravitational model
• Ground Reactions
• External Force

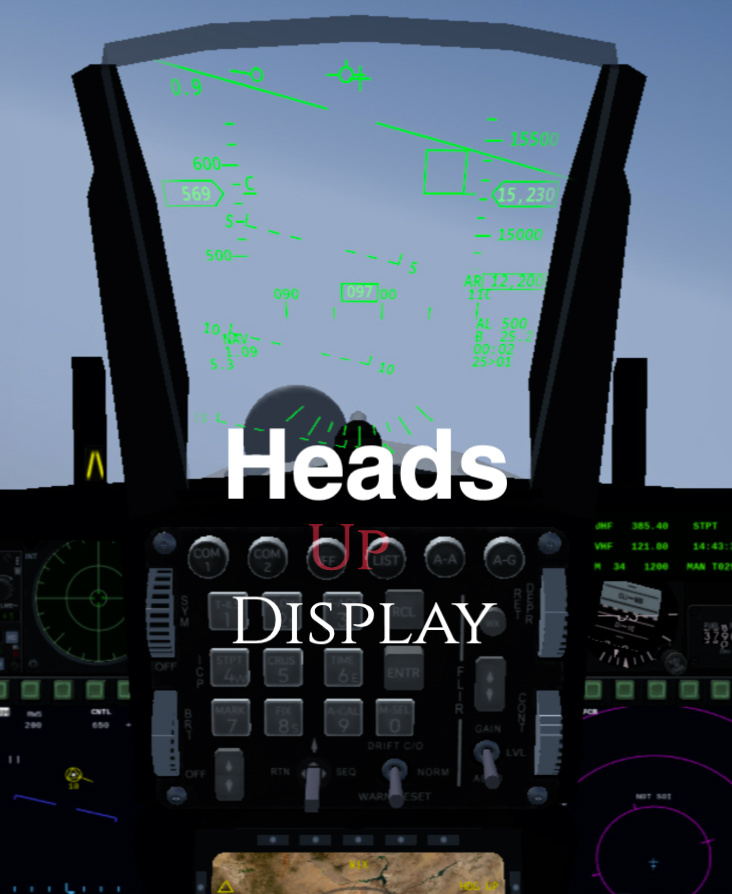

Heads Up Display

• Display all the parameters in the HUD
• Integrate locked target data on the HUD - Altitude, distance from target
• Give visual directions on the HUD to aid the pilot to get in LOS of HUD.

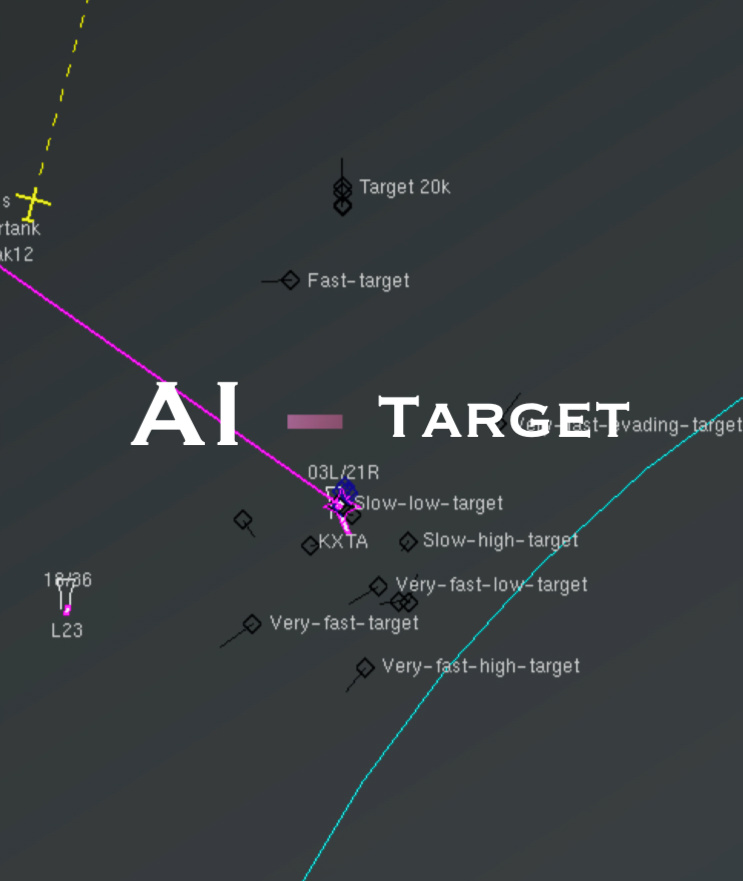

AI - Target

Real-time target generation for OTW display. Simulate land, air, and sea targets.

• Support:65 aerial targets (steady flight and up to 9G maneuvers)
• 130 sea targets , 130 ground targets
• Missile targets , Clutter data , Interleaved targets
• Send target data to the simulator at 1 ms resolution with time stamping
